Air Source Heat Pumps in Nepal
Air source heat pumps in Nepal are smart systems that move heat from the outside air into your home, giving you an energy-efficient way to heat and cool your space. Using a refrigeration cycle, these heat pump water heaters can pull warmth from the air even in cold weather to keep your home comfortable. In the warmer months, the process can reverse, letting your heater pump cool your home by sending heat outside. This makes an air source heat pump a cost-effective and eco-friendly alternative to traditional heating and cooling.
Air source heat pumps are not just for heating your home. They are also great for water heating in houses, hotels, hospitals, and swimming pools. By using renewable energy from the air, these systems are reliable, efficient, and environmentally friendly. For the best heat pumps in Nepal, Ultra Group Nepal offers high-quality options at competitive heat pump prices in Nepal.
>Go Green with Ultra Group’s Air-Source Heat Pumps! Shop Now !

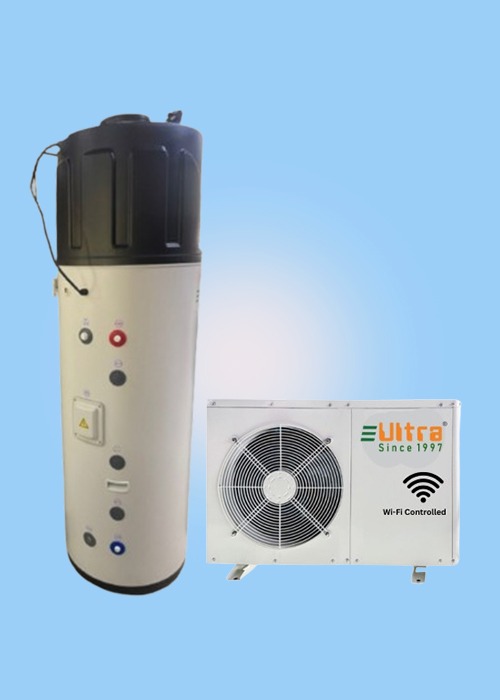

DOMESTIC HEAT PUMP WATER HEATER
| Rated Heating Capacity (kW) | 5 | 7 |
| Rated Input Power (kW) | 1.21 | 1.65 |
| Rated Working Current (A) | 5.8 | 8 |
| Max Input Power (kW) | 1.8 | 2.6 |
| Max Working Current (A) | 8.6 | 12.5 |
| COP | 4.13 | 4.24 |
| Max Water Temperature | 60°C | 60°C |
| Hot Water Yield (L/h) | 107 | 150 |
| Circulating Pipe Diameter | DN20 | DN20 |
| Rated Circulating Water Flow (m³/h) | 0.9 | 1.2 |
| Water Pressure Loss | 40 | 50 |
| Compressor | 5PS146EAA21 | 5KS205EAB21 |
| Water Pump | Shinhoo | Shinhoo |
| Noise | ≤53 dB(A) | ≤55 dB(A) |
| Refrigerant R410A Capacity (kg) | 0.7 | 0.8 |
| Weight (kg) | 45 | 55 |
| Working Temperature | -7°C ~ 43°C | -7°C ~ 43°C |
| Power Supply | 220V ~ 50Hz | 220V ~ 50Hz |
| Specification | Details |
| Power supply | 220V～240V / 50Hz |
| Tank volume | 200 L |
| Heating capacity | 1800 W |
| Rated input power | 470 W |
| Maximum input power (include electrical heating) | 2685 W |
| Maximum current | 12.2 A |
| COP | 3.82 |
| Refrigerant | R134a |
| Compressor | GMCC |
| Four-way valve | SHF-4 |
| Throttling device | Electronic expansion valve |
| Evaporator | Hydrophilic aluminum foil and copper pipe |
| Fan Motor | YDK25/32 |
| Fan | Φ190 |
| Wire controller | Digital screen, touch buttons |
| High/low pressure switch | 3.0～2.4 / 0.01-0.15 Mpa |
| Power cord specifications | 3m × 1.5mm² |
| Heating rate | 40 L/h |
Additional Specifications
| Specification | Details |
| Max outlet water temperature (heat pump mode) | 70℃ |
| Rated outlet water temp | 55℃ |
| Ambient temperature | -7～45℃ |
| Waterproof level | IPX4 |
| Sound Power Level | ≤ 52 dB(A) |
| Housing Material | Powder coated galvanized steel |
| Water tank | Tank with enamel interior |
| Water connection size | G1/2″ |
| Heat exchanger type | Microchannel heat exchanger |
| Built-in pressure protection | 0.8 MPa |
| Auxiliary electric heating | 2000 W |
| Accessory Bag | Manuals / PT valve |
| Packing Dimensions (L × W × H) | 645 × 645 × 1970 mm |
| Net Weight | 98 Kg |
| Operating ambient temperature | -7～45℃ |
| Product Dimensions | Φ570 × 1800 |
Key Features
- Mobile App Control
- Satisfies Different Demands
- Timer Setting
- High COP (Energy Efficient)
- 5 Years Warranty on Compressor
Energy Efficiency
- Rating: A+
- Refrigerant: R410A
FAQs
What is an air source heat pump?
An air source heat pump is a system that transfers heat from the outside air to heat your home or provide hot water.
Is an air source heat pump worth it?
Yes, they are cost-effective and energy-efficient, often leading to significant savings on energy bills.
Is AC an air source heat pump?
Yes, air conditioning systems can function as air source heat pumps by reversing the heating cycle.
What gas is used in air source heat pumps?
Most air source heat pumps use refrigerants like R-410A or R-32 to facilitate heat transfer.
Why use an air source heat pump?
They provide an energy-efficient way to heat and cool spaces, reducing reliance on fossil fuels and lowering carbon emissions.
